Product Details

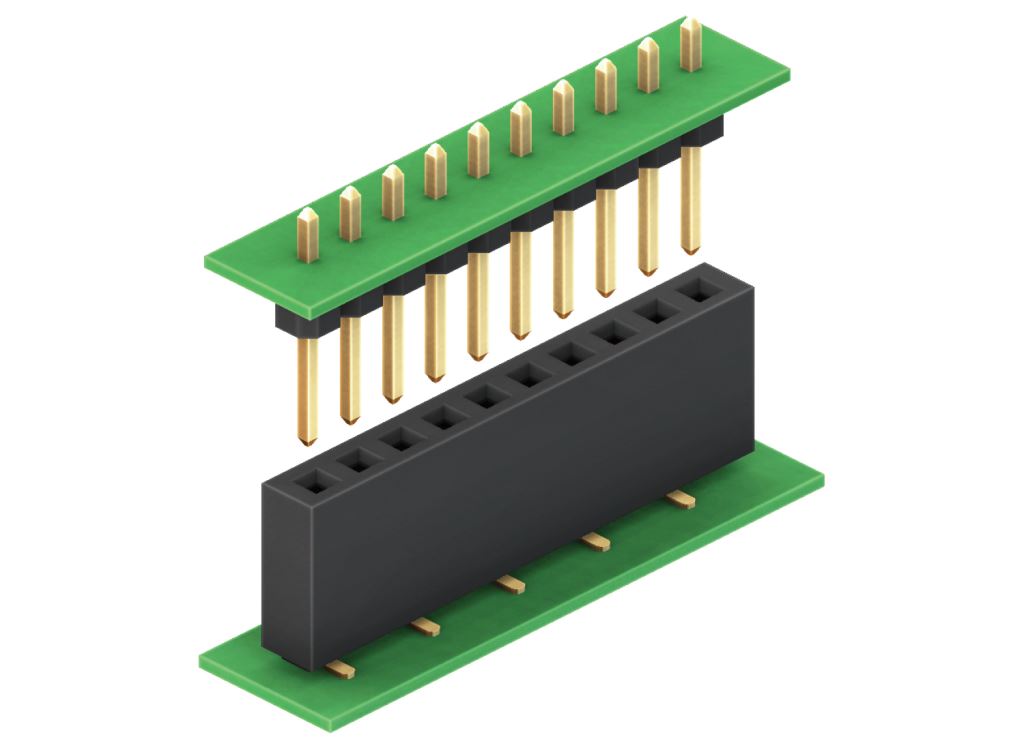

2.54mm PCB Socket Single Row Three Sides Contact SMD Type (H=8.5) 2212SM-XXG-85-BX

Model：2212SM-XXG-85-BX

SPECIFICATIONS

Mating part   2211 Series
Current rating   3.0A AC / DC
Voltage rating   250V AC / DC
Contact resistance   20m ohm. max
Insulation resistance   1000M ohm. Min
Withstand voltage   600V AC for one minute
Operating temperature   -40°C ~ +105°C
Material plating

1. Insulator: High Temp. Plastic (UL94V-0)
2. Standard Color: Black
3. Contact: Phosphor Bronze
4. Plating: Gold Plated
