Product Details

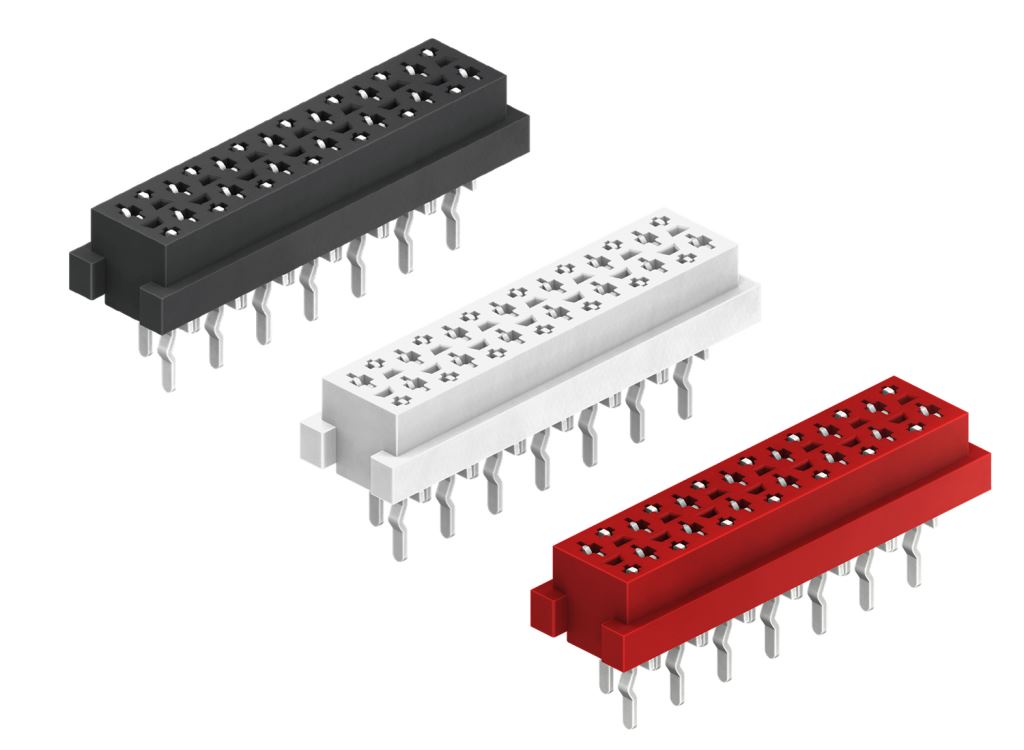

2.54mm PCB Connector Socket Straight Dip Type 4409AS-XX-XX

Model：4409AS-XX-XX

SPECIFICATIONS

Mating part   4409A,4409AP Series
Current rating   1.0A AC / DC
Voltage rating   30V AC / DC
Contact resistance   20m ohm. max.
Insulation resistance   1,000M ohm. Min.
Withstand voltage    500V AC/minute
Operating temperature    -40°C ~ +105°C
Material plating

1. Insulator: High Temperature Plastic ( UL94V-0)
2. Contact: Phosphor Bronze
3. Plating: Tin Plated

Inquiry Datasheet

Product Details

2.54mm PCB Connector Socket Straight Dip Type 4409AS-XX-XX
