Product Details

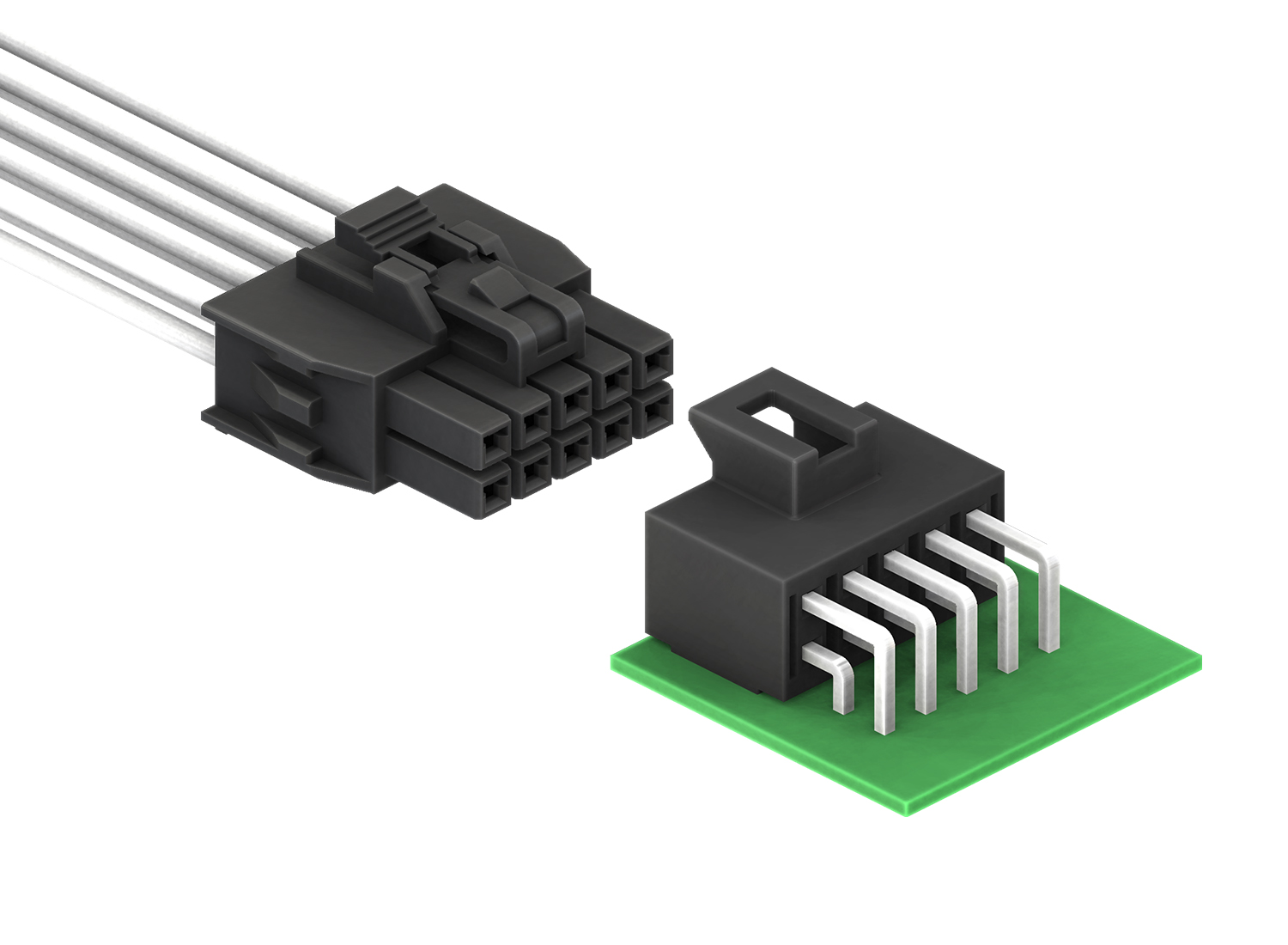

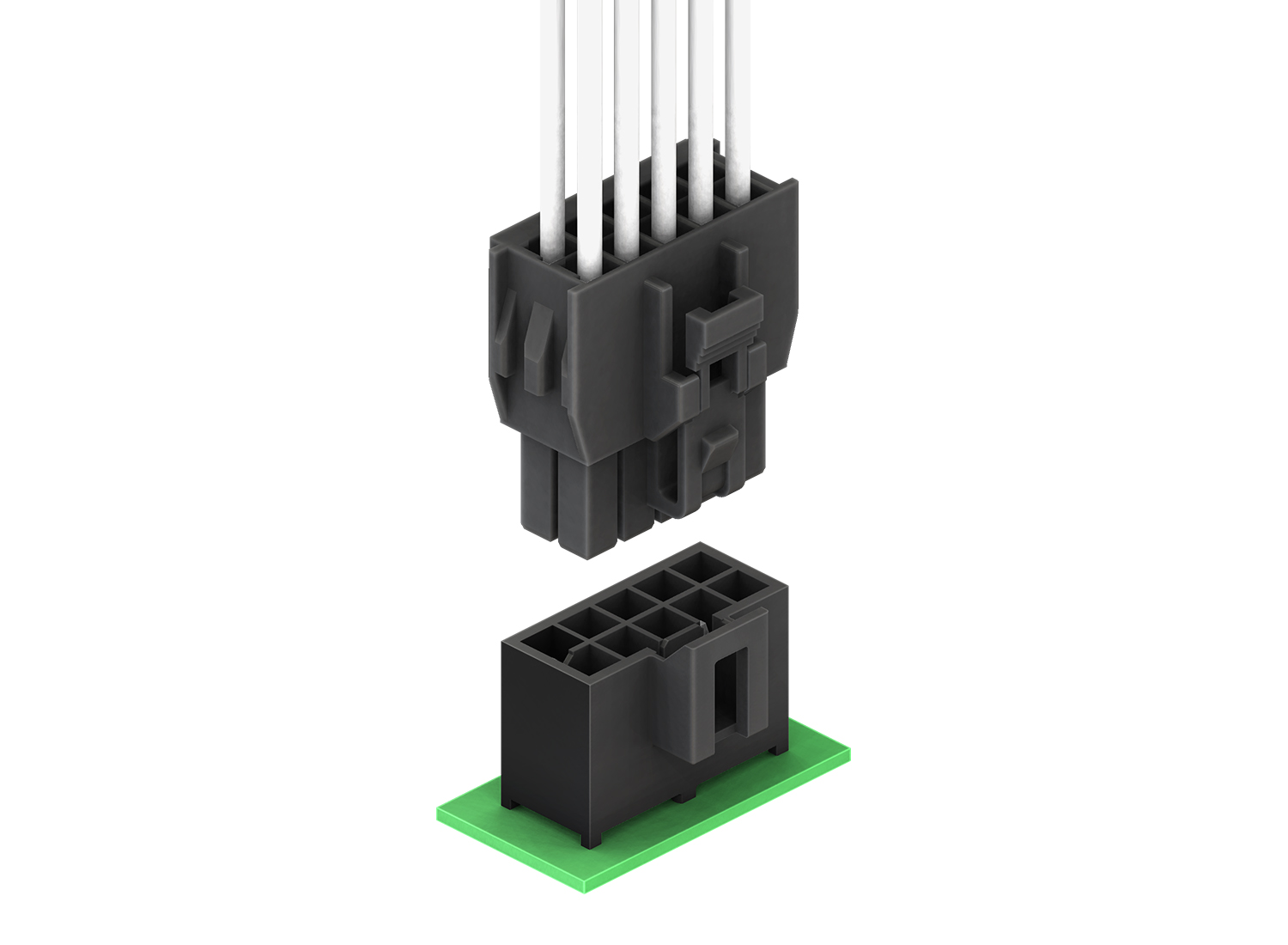

2.50mm Wire to Board Housing Double Rows Connector 5550-XX-XX

  • Model：5550-XX-XX
SPECIFICATIONS
  Mating part   5551S(R)-XXT Series
  Current rating   6.5A AC / DC
  Voltage rating   250V AC / DC
  Contact resistance   10m ohm. max
  Insulation resistance   1,000M ohm. Min
  Withstand voltage    1500V AC for one minute
  Operating temperature    -40°C ~ +105°C
  Material plating
1. Insulator: High Temp. Plastic (UL94V-0)
2. Insulator Color: Black & White
3. Terminal: Brass
4. Finish: Tin Plated

    Inquiry Datasheet
    Features
    ■ Secure locking structure
    ■ Contact lock structure
    ■ Multiple mechanical keying
    ■ Terminals available in gold and tin plating
    ■ Fully isolated terminals
    ■ Positive-lock housing with anti-snag design
    Application
    ■ Automotive
    ■ Consumer
    ■ Home Appliances
    ■ Industrial
    ■ Medical
    ■ Lighting
    ■ Telecommunications / Networking
