產品明細

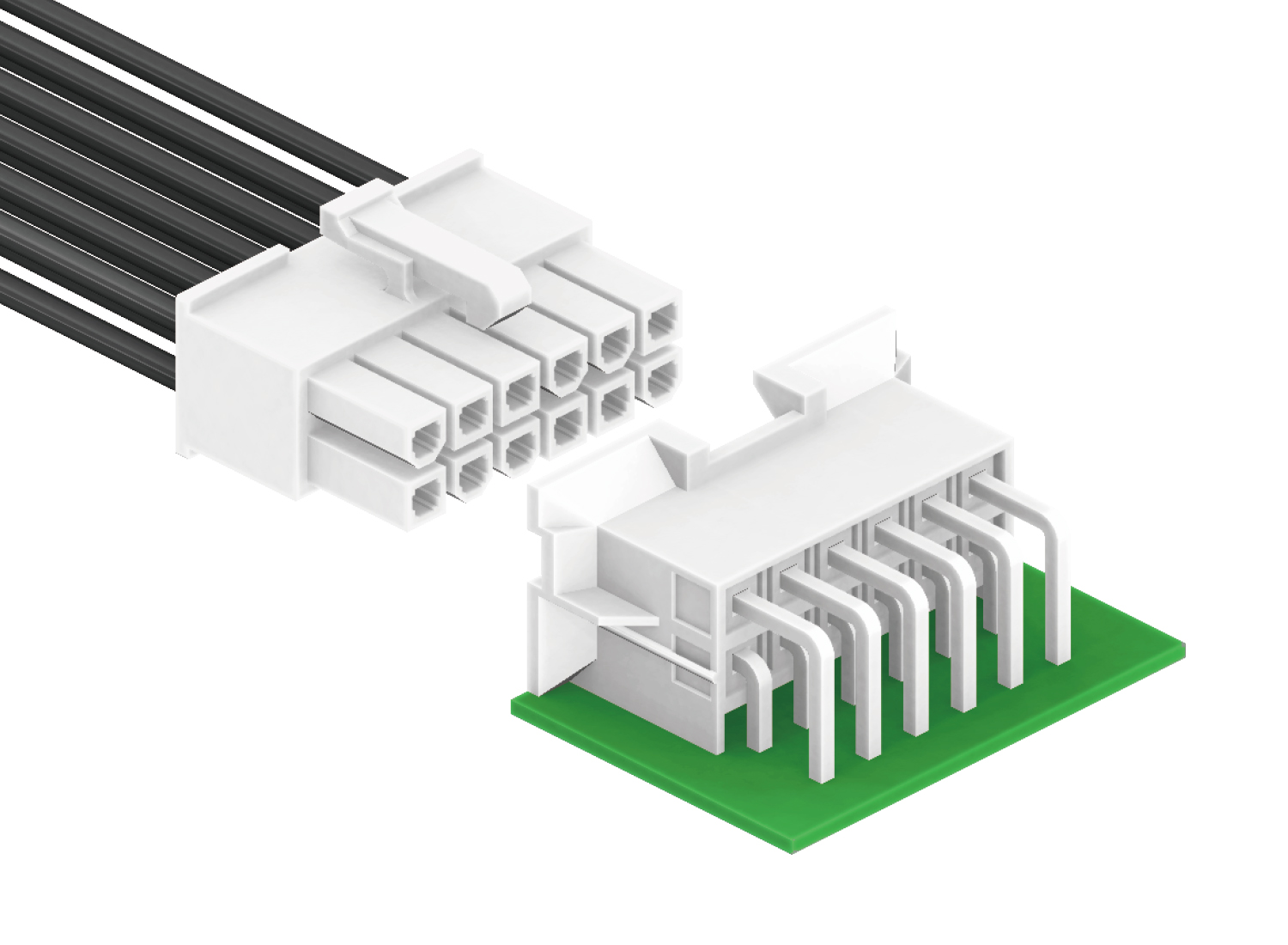

4.20mm Wire to Board Wafer With Blind Mate Double Rows Right Angle Dip Type 2269R-XX-BMI

  • 料號：2269R-XX-BMI
產品簡述
  Mating part   2257-XX Series
  Current rating   9.0A AC / DC
  Voltage rating   600V AC / DC
  Contact resistance   10m ohm. max.
  Insulation resistance   1,000M ohm. Min
  Withstand voltage    1,500V AC for one minute
  Operating temperature    -40°C ~ +105°C
  Material plating
1. Insulator: Nylon (UL94V-0)
2. Insulator Color: Transparent
3. Terminal: Brass
4. Plating: Tin Plated
    Inquiry Datasheet
    Features
    ■ Prevents accidental mismating
    ■ Blind-mating interface
    ■ Ensures a reliable connection
    ■ Fully isolated terminals
    ■ Ideal for applications requiring a high number of mating cycles

    Application
    ■ Industrial
    Industrial equipment
    Power suppliers
    ■ Consumer
    Copiers / Printers
    Freezers / Refrigerator
    Gaming equipment
    Vending machines
    Home appliances
    ■ Automotive
    Harness manufacturers
    Inside devices
    ■ Medical
    Medical devices
    X-rays
    ■ Telecommunications / Networking
    Routers and Switches
    Servers
