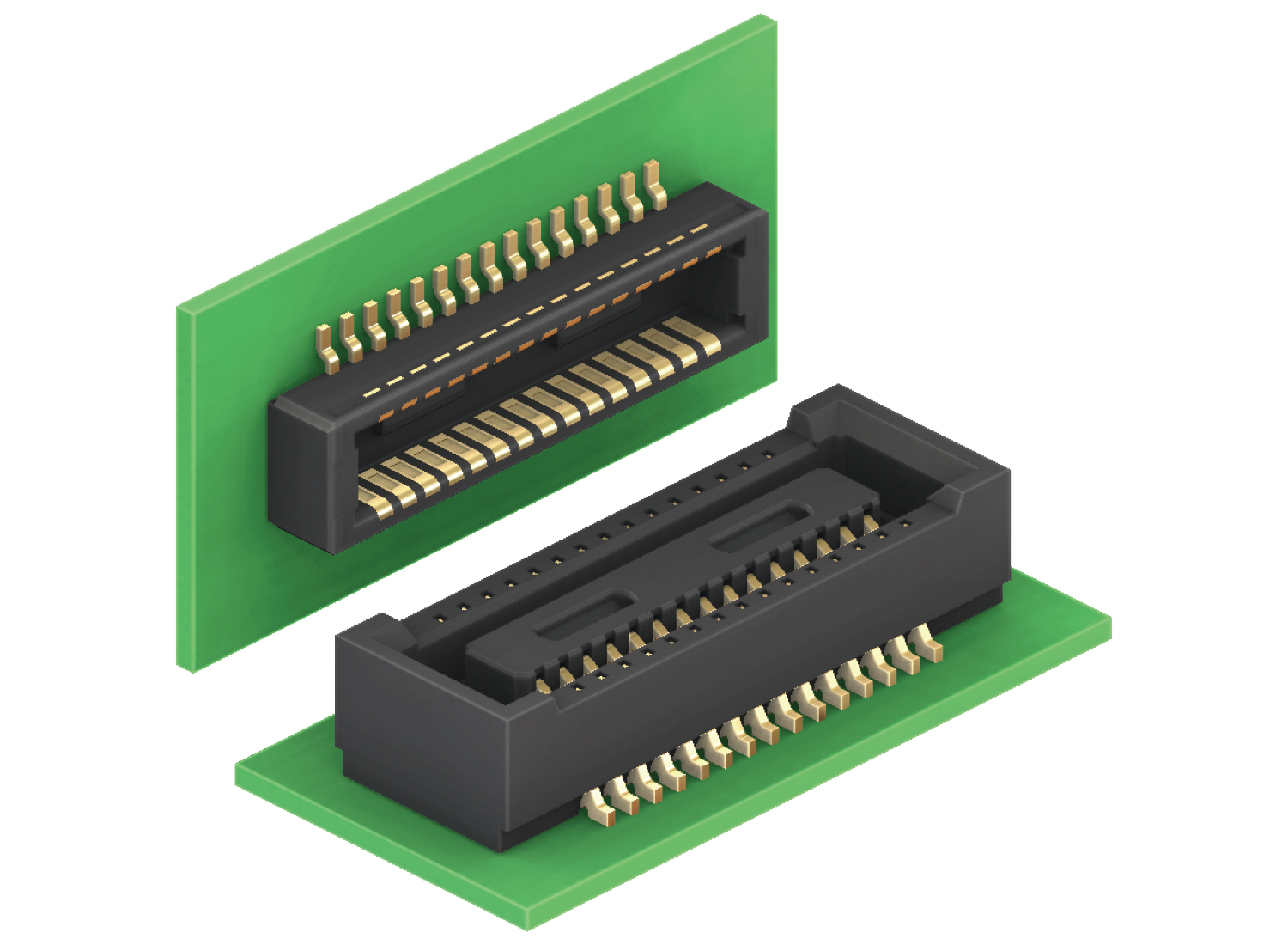

0.4mm Board to Board Plug To Socket Connector Height 2.00mm 2004S-XXG-A195

料號：2004S-XXG-A195

產品簡述

Mating Part   2004P-XXG-A114
Current rating   0.3A AC/DC
Voltage rating 30V AC/DC
Contact resistance   90m ohm. max
Insulation resistance   50M ohm. Min
Withstand voltage   100V AC for one minute
Operating temperature   -35℃+80℃
Material plating

1.Insulator: High Temperature Plastic (UL94V-0)
2.Contact:Copper Alloy
3.Plating: Gold Plated

Inquiry Datasheet

Features
■ 0.40mm pitch, 2 rows,0.9/1.5/2.0/2.5/3.0/3.5/4.0mm stacking height.
■ 2 point contact design to resist twisting stress.
■ Double Contact structure ensures high wear resistance and high contact reliability.
■ Pb-free. (Ni barrier on contact prevents solder wicking)

Application
■ Earphone
■ Hearing aids
■ Tablet computer
■ VR device
■ Smartwatch
■ E-cigarettes
