產品明細

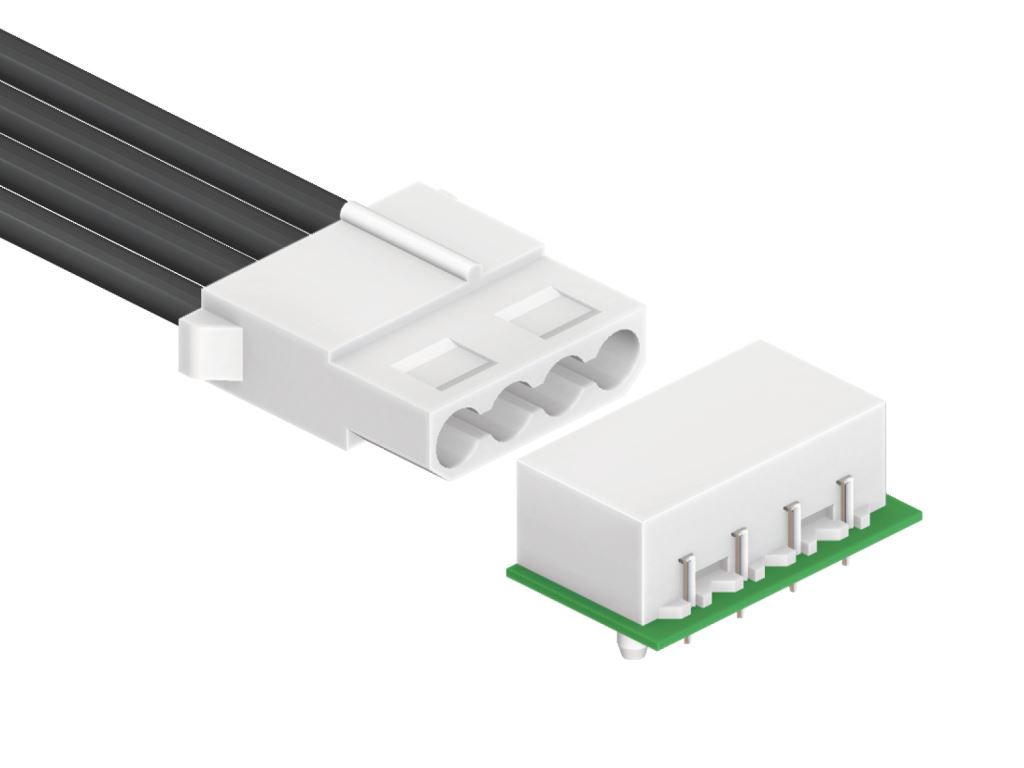

5.08mm Wire to Board Socket Housing Single Row Connector 8980H-04

  • 料號：8980H-04
產品簡述
  Mating part   8981S-04, 8981R-04
  Current rating   7.0A AC / DC
  Voltage rating   600V AC / DC
  Contact resistance   20m ohm. max.
  Insulation resistance   5,000M ohm. Min.
  Withstand voltage    1,000V AC for one minute
  Operating temperature    -40°C ~ +105°C
  Material plating
1. Insulator: Nylon66 (UL94V-2)
2. Contact: Phosphor Bronze
3. Plating: Tin Plated
4. Application: Wire Awg 18 to 24
    Inquiry


    相關產品Related Products

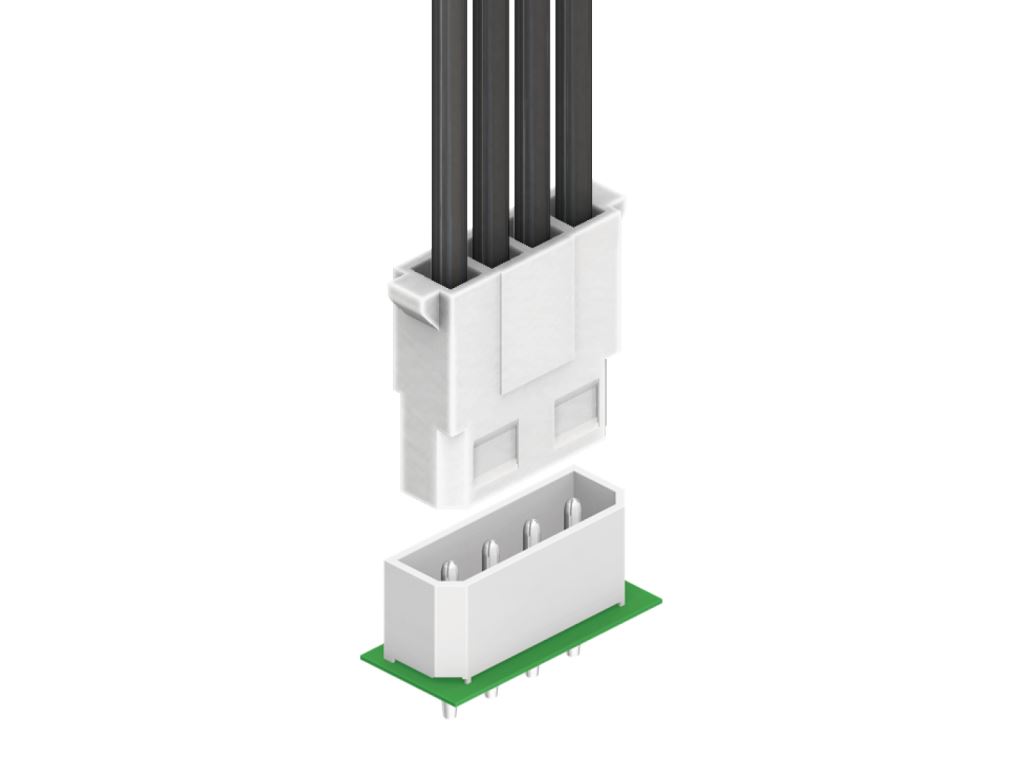

    5.08mm Wire to Board Power Plug Housing Single Row R/A Dip Type 8981R-04
