產品明細

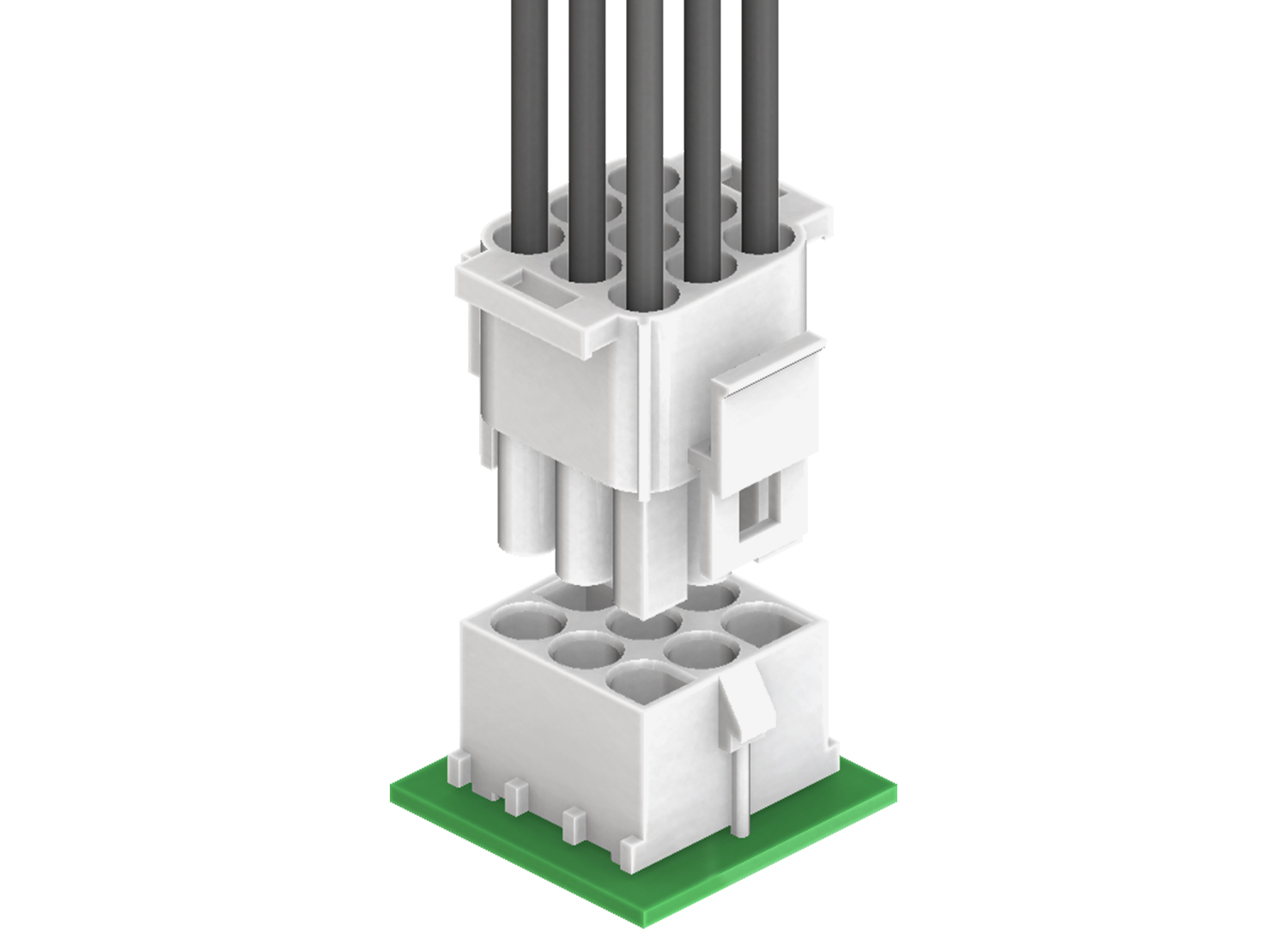

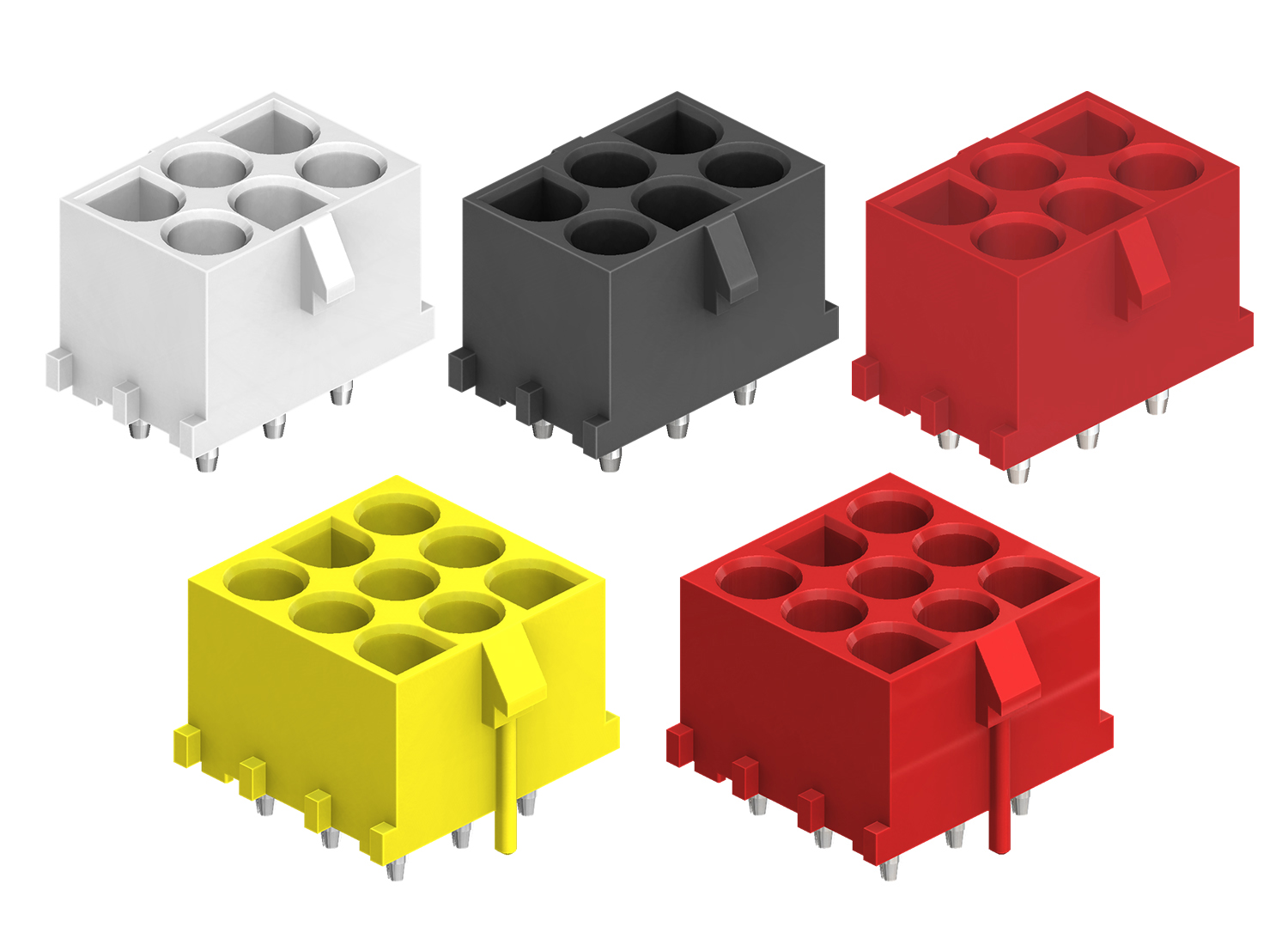

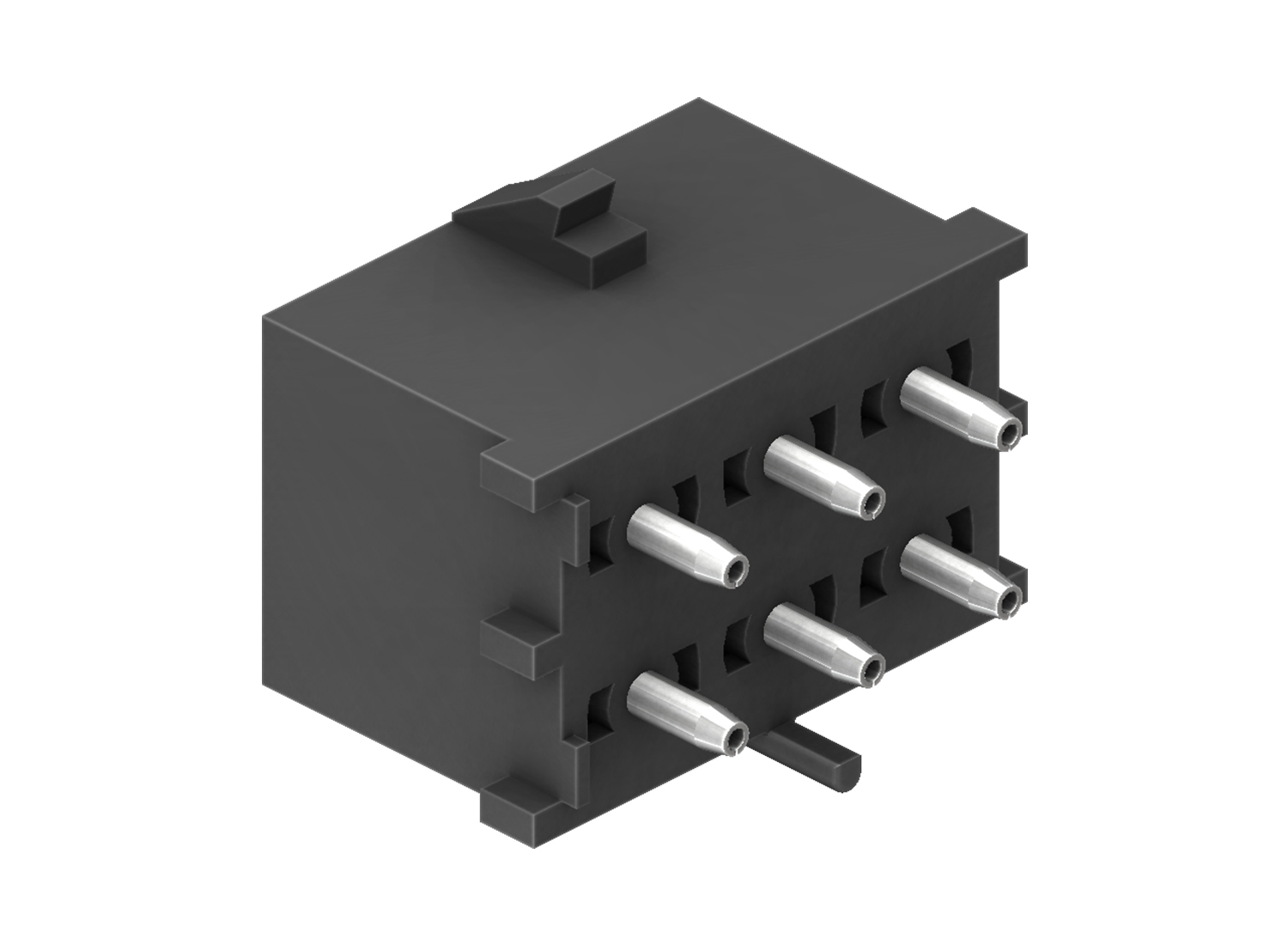

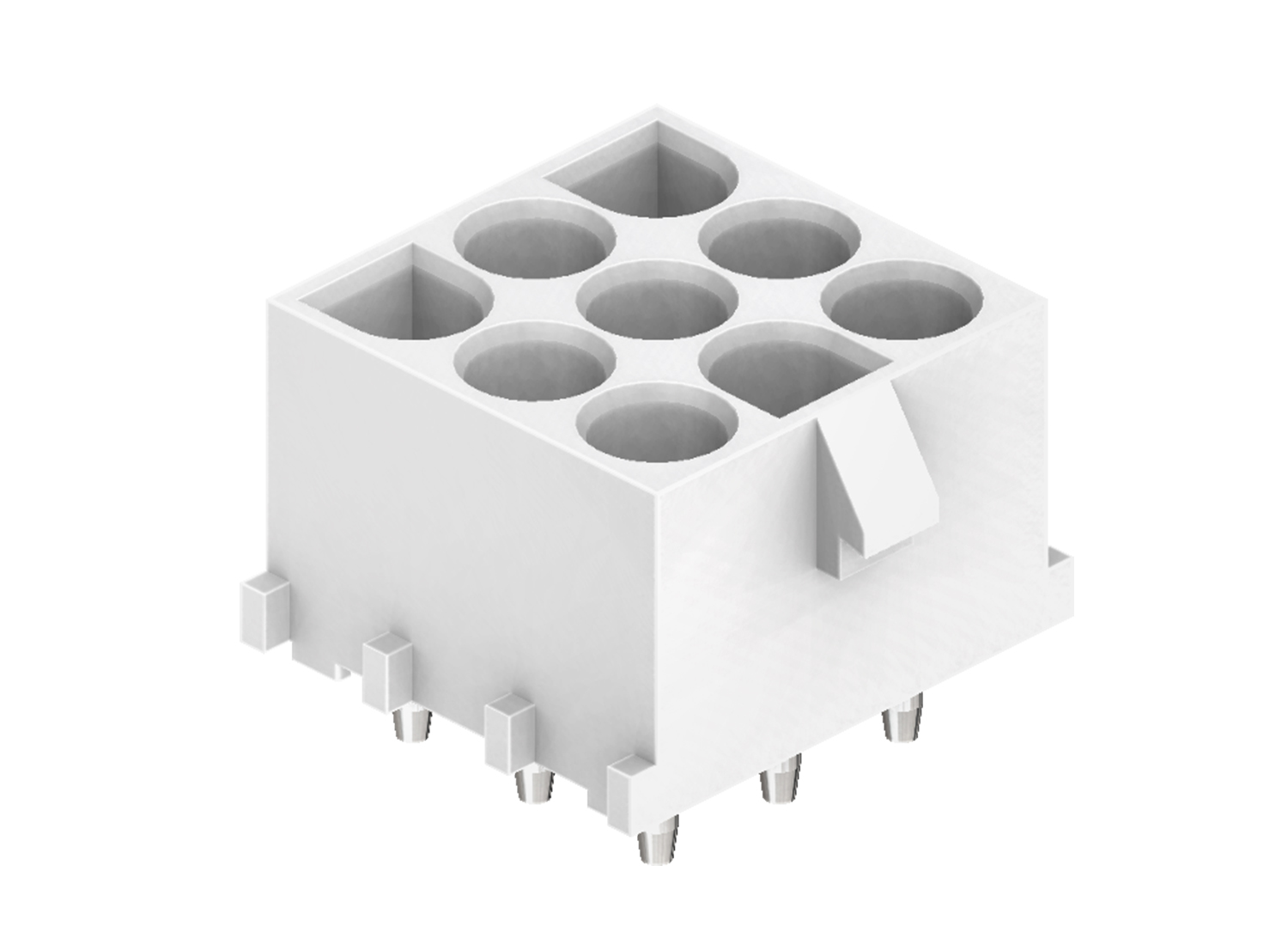

6.35mm Plug Wafer Straight Dip Type 9635S-XX-XX-XX

  • 料號：9635S-XX-XX-XX
產品簡述
  Mating part   9635R-XX
  Current rating   13A AC / DC
  Voltage rating   600V AC / DC
  Contact resistance   20m ohm. max.
  Insulation resistance   1,000M ohm. Min.
  Withstand voltage    5000V AC for one minute
  Operating temperature    -55°C ~ +105°C
  Material plating
1. Housing: Nylon 66 (UL94V-0)
2. Contact: High Performance Alloy
3. Plating: Tin Plated
4. Application: Wire Awg 16 to 20
    Inquiry Datasheet
    Features and Advantages
    ■ Power-dense design with high-current terminals, tight pitch and row spacing
    Provides more power than other mid-range power products in the industry
    ■ Positive locking housing
    Ensures strong retention when receptacle and header are mated. Delivers an audible click to provide feedback that connector is fully mated
    ■ Fully isolated terminals
    Protects against potential damage during handling and mating

    Application
    ■ Commercial Vehicle
    Boating
    Construction equipment
    Heavy equipment systems
    Marine equipment
    ■ Consumer
    ATMs
    Refrigerators
    ■ Industrial
    Automation equipment
    Conveyor belts
    Elevators
    ■ Networking
    Fan tray assemblies
    Rack-mount servers
